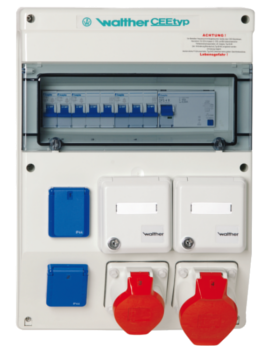

CEE-type socket combinations are managed and manufactured in accordance with the international standard for low voltage switchgear and control gear assemblies, DIN EN 61439.
Each socket combination is wired ready for connection and is subjected to an individual unit test before being supplied with a testing log.
Wall-mounted distributors | Hight x widht x depth | restamping above and below |
| 658 / 659 | 237 x 125 x 124 mm | M 20 / M 25 |
| 692 | 237 x 183 x 151 mm | M 25 / M 32 / M 40 |
| 695 (Housings 691 und 696 flanged) | 475 x 183 x 151 mm | M 25 / M 32 / M 40 |
| 698 | 370 x 183 x 151 mm | M 25 / M 32 / M 40 |
| 682 | 404 x 290 x 151 mm | M 40 / M 50 |
| 689 | 655 x 290 x 171 mm | M 40 / M 50 |
| 685 (Housings 681 und 686 flanged) | 809 x 290 x 171 mm | M 40 / M 50 |
Multiple socket | Hight x width x depth | restamping above and below |
| 50 / 651 | 446 x 115 x 86 mm | M 40 / M 50 |

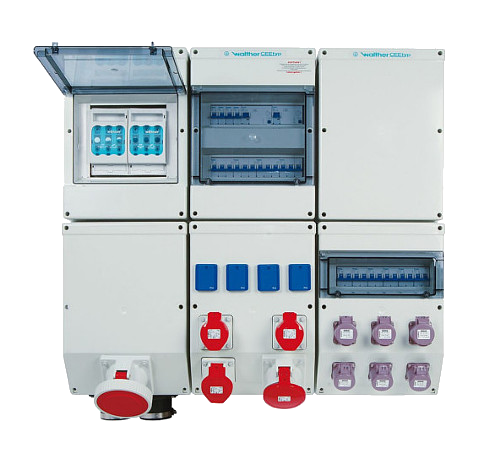

Wall distributors are available in the materials of plastic and solid rubber and in various housing sizes. The socket combinations are designed so that they can be connected to each other as often as required so as to accommodate any customer requirements with flexibility. In the largest size, cable cross-sections of up to 95 mm² can be connected. Even for applications involving chemicals and aggressive media, there are suitable solutions available.
| Material | Material properties | Wall thickness | Colour | Protection category | Area of application |
|---|---|---|---|---|---|
| PC / ABS (grey) | • high chemical resistance • Silicone and halogenfree • highest flammability class acc. to V0, UL-tested • Lead and cadmiumfree • Shock and impactproof • UV-resistant | 3-4 mm | RAL 7035 grey | IP67 | Industrial warehouses, Assembly and production facilities |
| NK / SBR mixture of natural and styrene-butadiene rubber | • Extremly robust • unbreakable • resistant to aging, acids and alkalis • Shock and impactproof • UV-resistant | 10 mm | RAL 9005 black | IP65 | Construction sites Heavy industry |
| PBT Valox | • Very high chemical resistance • Resistant to acids and alkalis • silicone and halogenfree • Lead and cadmiumfree • shock and impactproof • UV-resistant | 3-4 mm | RAL 7000 grey | IP67 | Chemical industry Food industry |
An extensive range of accessories and special solutions adds the final element to the WALTHER-WERKE product portfolio. This means that various static column versions made from stainless steel are also available for the installation of socket combinations outdoors, for example mobile units with wirelessly controlled change of rotation direction or mobile personal safety equipment as per DIN 14660.
